Smart home vs an automated home

Smart v automated home


In this article I'll touch on the Internet Of Things (IOT) and what it is.  I will talk about, and show similarities and differences between a smart home versus an automated home.  I will talk about different home automation software packages and different ways to gear your IOT devices towards making your home more of a smart home.

Internet Of Things

You may have heard the terms IOT or IOE before and said, what the heck is that.  IOT stands for the Internet Of Things.  Similarily, IOE stands for the Internet Of Everything.  IOT and IOE,  in it's broadest sense is the process of making the things that we use every day, in some way shape or form, connected to the internet.  These things have various sensors and control functions.  Being connected to the internet allows outside access to to the data and control that those sensors and controls provide.  IOT is a way of simplifying the world around you.  IDC, a market intelligence research firm, says that there are around 13 billion connected devices in use worldwide already.  Business Insider (BI) Intelligence projects 34 billion devices will be connected by 2020.

Home automation projects

X10 LogoOne aspect of IOT that is becoming more common is home automation.  Home automation is nothing new though.  My start into home automation began many years ago with X10.  I found it nice to be able to control devices remotely.  With their software called ActiveHome, I could also automate things with motion sensors and timers using a computer.  After using it for a bit, I found that there were things that I wanted to do that my X10 hardware could not.  Since then I have tried a number of different software packages, most of which fit in the realm of home automation platforms.Automation controllers  Some of these have included MisterHouse, Domoticz and most recently my VeraPlus controller.  I have another blog post talking about my home automation setup.

OSA smart homeOne project I was a part of that geared itself toward being more of a smart home system than an automated home system.  That project was called Open Source Automation, or OSA.  The features that drew me toward the system were it's ability to integrate a number of different types of hardware into one system.  Another thing that drew me toward it was it's focus towards being a smart home controller. When I was on the project, the smart home features were in their infancy, but moving forward.

Smart home vs automated home

So what is the difference between an automated house and a smart house.  The ability for you to turn devices on and off from your phone, and scheduling lights and other devices to turn on and off on different schedules, simply means that you have an automated home.  You may ask then, how is that different from a smart home.  A smart home adds other layers on to the automated home system giving it a new level of functionality.

The broadest aspect of a smart home is gathering lots of data.  Smart homes are made of many data gathering tools and sensors.  Gather more data and you can  make more intelligent decisions based on that data.  Another thing we'll throw into the mix is objects.  These objects have many properties.  The properties of these objects, combined with data that your system has collected can now make smart decisions.  Now your system is gearing up to be a smart house.

One of the biggest pieces of data in all of this, and the most difficult to manage, is occupancy sensing.  A basic level of occupancy sensing is to put motion sensors in a room that will turn lights on and off.  However, the use of a motion sensor will only tell your system that one or more people occupy an area.  Now what if you could tell how many people were in that area.  To take that a step further, what if you could tell exactly who was in a particular area.  Now you can make smart decisions based on that added data.

People objects

People iconPreviously we mentioned objects and their corresponding properties.  So lets say we defined a person as one of those objects.  We'll define two "person" objects using myself (Dan) and my wife (Karen) as examples.  So let's say Dan likes the temperature in a room to be 70° and he likes a lot of light in a room.  Two properties for Dan would then be "temp = 70°" and "lightLevel = 100%".  Now Karen likes the temperature in a room to be 67° and have the lights a little dimmer, so her two properties would be "temp = 67°" and "lightLevel = 70%".  Let's combine this with motion sensing with person recognition.  You can now define your rule on your main controller to say:

If ( motion_sensed ) {
    if (furnace_mode == off ) {
        set furnace = on; //Turn the furnace on if someone is in the area
    set furnace_temp = temp; //Set the temperature to the users desired temp
    set lights = lightLevel ; //Set the lights to the users desired light level

So with that, if I walk into the room and the furnace is off, it will set the temperature to 70° and turn the lights on to 100%.  If my wife walks in under the same scenario, The furnace will set itself to 67° and the lights will dim to 70%.

As you can see, the more data you can gather, the smarter, more informed decisions your automation controller can make based on that data.  Using this approach can save energy and improve the quality of life for the occupants.  You should now be able to tell the difference between a smart house and an automated house.


So to sum it up, an automated house gives you control of devices from an external source such as a smart phone and limited action from other sensors such as motion sensors.  A smart house makes it's decisions using multiple factors and sensors.  Check out the ongoing discussion on this topic on the MySensors website .

Related Images:

The setup of my 1-Wire network


DISCLAIMER:  This post was copied from my old web page and is a bit old.  Some information contained within this post may be out of date.
In my home automation setup, I wanted to be able to monitor temperature in various places around my house as well as outdoors.  I wanted a solution that was relatively cheap and easy to use.  My brother some time back had mentioned to me about something called 1-Wire.  He had used it up at his cabin to monitor temperature and electric usage through current sensing.  I did a bit of searching and found that it fit both of my needs, cheap and easy to set up.  So I figured I would document my setup here.

The 1-wire interface

1-wire adapterThe first thing I needed to run this was some type of 1-Wire computer interface.  After looking at options, I came across the DS9097U adapter on Ebay.  Unlike other 1-Wire adapters that had an RJ11 jack for connecting the sensors, this model had 2 - 3.5 mm headphone style jacks on it.  It did come with an adapter to connect the RJ11 style sensors if needed.  It looked like that adapter would fit the bill perfectly.  I ended up purchasing one for around $20.00 US from a china distributor on Ebay.

The sensors

The next thing I was going to need was some of the 1-Wire temperature sensors.  My brother had mentioned that he got all of his equipment from a company called Hobby Boards.  I checked their website and I could buy the bare temperature sensors for about $4.50, but they wanted $10.00 for shipping.  I decided to check Ebay.  I figured that if I could get the adapter cheap, I should be able to get the sensors cheap too.  I ended up finding another chinese distributor that sold the sensors in packs of 5 for around $7.00 shipped.  A pack of 5 of them from Hobby Boards would have been about $40.00 shipped, so I went for the Ebay deal (who wouldn't at that price), so I bought a pack of 5 just to try things out.

The build

Now that I had all the parts, I needed to figure out how to wire things up.  Looking at the data sheet, I saw that there were 2 ways to wire these devices.  The first was using parasite power.  This is basically powering the device from power it grabs from the 1-wire network.

The other way was to use an external 5 volt power source.

So, if I was to use the external power source, how would I accomplish this.  I once again turned to Hobby Boards who had a how to section that outlined a wiring specification that used cat5 wire, and supplied a regulated 5 volts along with an unregulated 12-24 volts on the wire for use down the line for other devices.  The color scheme shown here is using the ISO T568A standard.  Most cat5 cables that you buy these days use the ISO T568B specification which is what I am using.  The only noticeable difference is that the orange and green wire pairs are reversed putting the color order at, white orange, orange, white green, etc...

I figured using a documented wiring spec would be more reliable, mainly because it has been tested and used by others.  Not to mention if I wanted to add other devices from Hobby Boards, I can do it without having to re-wire things.

Now that I had a wiring specification planned out, I had to figure out the temperature sensor nodes.  Using the information from the DS18B20 data sheet, I devised a simple circuit that allowed me the option of using parasite power or external power.  Using a jumper on a 3 position header I was able to quickly switch between the 2 if needed.  In the schematic shown to the left, placing the header jumper across pins 2 and 3 will run the sensor on parasite power.  Conversely, by placing the jumper on pins 1 and 2, I could run it on the 5 volt external power.

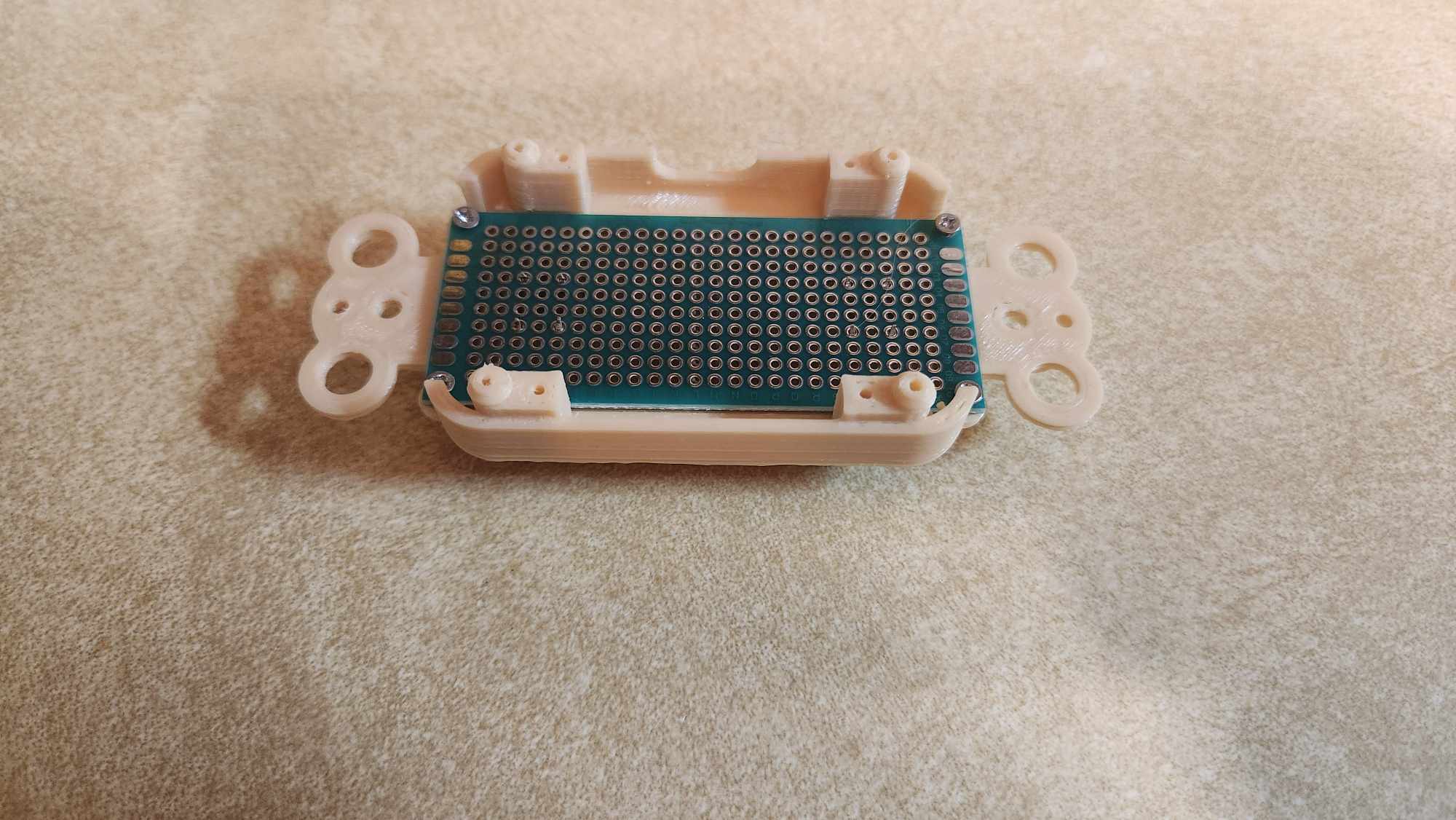

Since the majority of the nodes were going to be in the house on walls, I wanted something that wasn't going to look unsightly on the wall.  I ended up finding someone that was throwing out some old vented covered wall boxes.  I then put together a couple of these circuits on some perfboard.  I even made an etched board that although it turned out good took too much time.  The perfboard versions were much easier to do in the small quantity that I needed, and they worked just as well.  To the right is one of my perfboard sensors mounted on the wall plate ready to be installed.  I connected each one individually and used the software that came with the 1-Wire adapter to get the built in hardware address of each sensor and labeled each one.

The installation

Now that I had a few of these built, it was time to install them around my house.  To start, I installed one in the master bedroom, orne in the spare bedroom and one outside on the outer edge of my deck.  I wired these up with the cat5 wire just stripped and screwed to the terminal block using the blue pair and the solid orange wire.  Though  this works, my issue with it right now is that none of the connections pass the other wire pair signals down the line, like the 12-24 volt power.  For now, this is not an issue, but I do have a plan for fixing it which I still need to implement. The idea is to use an RJ45 splitter adapter similar to the one shown to the left.  By crimping modular plugs to the ends of each cable coming to the temp sensors and plugging them into the 2 jacks on the adapter, this will pass all signal and power lines through. I can then clip the wire that comes off of the adapter and use it to connect to the temp sensor or whatever other sensor I try to install.

The only other hurdle to attack in this project is to get things set up in my automation software.  This was insanely easy.  I installed the 1-Wire plugin for OSA and after plugging the sensors into the adapter, OSA sent a 1-wire search ROM signal which automatically detects any sensors attached to the 1-Wire bus.  OSA then automatically added these as objects to the system.  All I needed to do then is to add them to my floorplan view and make use of them in the system.

I started with the outdoor sensor.  Looking at my RCS thermostat a while back, I noticed that it had an option for displaying the outdoor temperature on the wall display keypad.  Since I wrote the OSA plugin for it, I simply added an option for taking the temperature value from any other OSA object and sending it to the thermostat.  Now if I want to know the temperature outside, I just look at my thermostat.

I wanted to do more than just use these to display the temperature on a wall display.  My next thing to tackle was to use the value from my master bedroom sensor to aid in controlling a booster fan that I have attached to my furnace.  The booster fan was originally set up to come on any time the furnace or central air turned on.  I thought that this was a waste of energy, so I set up a script to say if it is between 9:00 PM and 1:00 AM, and the temperature in the room is below 68° in the room when the furnace kicks in, then turn on the booster fan.  This is so that the room is warmed up a bit when we go to bed.  I will do something similar for the summer months and using the air conditioner.  Now I have some real world energy saving with the system.  Though not much, i'd suspect, it is something.

I have recently installed two of these in my bar/man cave area in my basement.  The room is very long with a fireplace at one end.  My plan is to monitor both temp sensors and when the one closest to the fireplace shows a temp that is 3 or more degrees higher than the one on the other end of the room, it would turn on a fan to circulate the air in the room.  The fan would then stay on until the temperature normalized throughout the basement.

One more thing that I plan on doing which I have not yet set up is to put a system in place for humidity control in my bathroom.  The idea is to install a 1-Wire temperature and humidity sensor in the bathroom.  I will then install a controller on my vent fan that I can turn on when the humidity gets too high.  The fan would then stay on long enough for the humidity to get to a safe level.  The idea behind this is to control mold and mildew buildup in the bathroom.


There are many other uses for 1-Wire in a home automation setup.  Implemented correctly, many of these can save you time money and cleanup costs.  I have not even scratched the surface of things I can do with this, and I plan to do a lot more over time.
